Recently received information on TRDIEHL EncodersThe consultation is more, mainly to the old models. This is not another large flange SSI absolute encoder, the model is very long: CE100M-80-SSI-100-01360, the new signal is: CEV100M-01360. today mainly for this model to write a note.
Let's take a look at the parameters of this encoder:
The flange of this encoder is relatively large, diameter 100mm, synchronous flange, shaft size 12mm, in the field of absolute encoder is considered a relatively large flange size. Communication for the binary SSI signal, resolution of 4096 * 8192, this is all the basic parameters, more detailed parameters will not be listed.

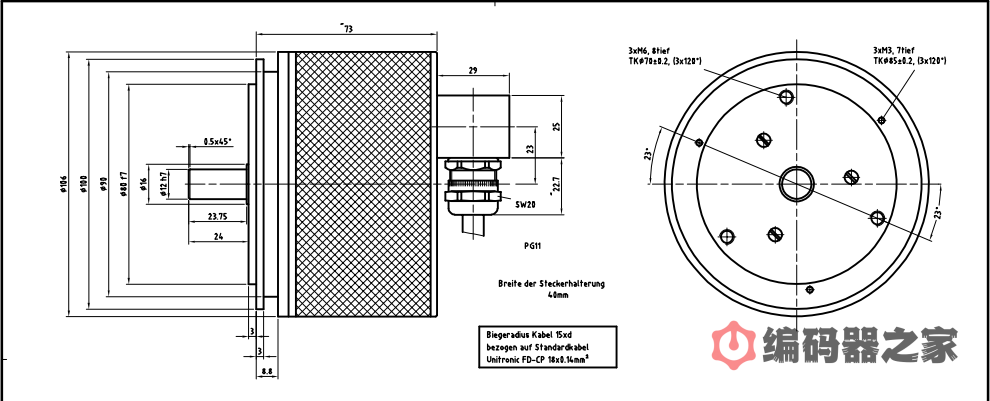

Let's take a look at the original encoder product size picture:
The picture above is the original encoder size drawing. We can get a rough idea of the exterior dimensional data of the entire encoder based on the drawing.
Customized alternative solutions
Our customized replacement solutions are identical in terms of mounting dimensions and application parameters. The area of difference is the housing part of the encoder, which is a bit lower in size than the original. However this part is not a mounting dimension does not affect the use.
For the electrical part, we have a complete replacement program for the SSI absolute encoder, which is a standard product with our common communication protocols. It's just that when replacing this encoder, our program will be fine after adjustments are made.
From the original encoder manual to see the drawing labeling is 2001, this is a launch of the older models, it is estimated that the demand is also a lot of spare parts market. In any case, we give a complete customized replacement solution. It can be a perfect 1:1 replacement solution for the application.
This type of encoder, remember in the last year when a steel factory has done a customized. To now add up to be considered twice, the overall quantity demand is not too much. I still do not know what this encoder is used for, this does not matter, anyway, made it for everyone.
If anyone has a need for this, they can contact me, there is a phone number at the bottom of the article.
