CEV65M-00025, is a parallel output absolute encoder from TR. This model is also some years old and a bit difficult to replace, mainly because the rear-out 39-pin plug is relatively rare.
When we received the substitution inquiry, we were most concerned with the plug portion and then the communication protocol.

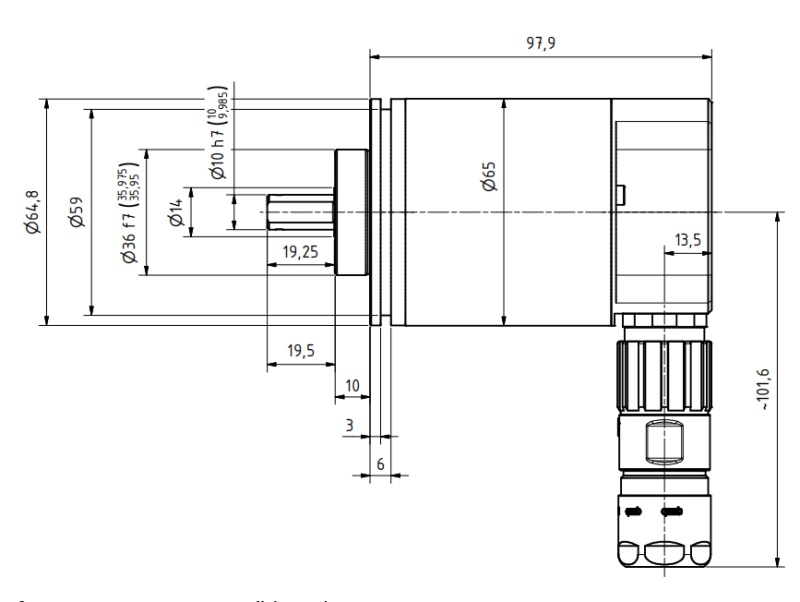

This encoder is a clamping flangeParallel absolute encoders, 10mm shaft diameter, 36mm tab. There's not much special about the mounting dimensions. The only thing to be concerned about is the rear exit plug: 39pin.
We accepted thisparallel encoderThe commission, parallel output communication protocol is kind of handy for us. The resolution is 4096*4096, which is also a conventional parameter. Just produce the corresponding 65mm flange through the machining center and mount it on the 58mm housing to complete the alternative solution.
It seems that this CEV65M-00025 replacement solution is not too complicated. This is mainly due to the fact that we already have a part of the foundation, such as the internal circuit design, which is already semi-finished, and then the technology will soon be ready for the finished product.
This replacement solution for this encoder is one of the simpler replacements done recently. Just address the plugs and we'll define the wiring based on the original wiring. This way, the replacement that everyone gets can be used seamlessly.
For us, doing replacements is not a good option. Mainly because the quantity is so small, everyone doing the replacement is basically like three or five units. However, we can still solve problems for everyone. This is our company's mission: to solve customer application problems.
If, however, you also have a need in this regard. It is completely possible to get in touch with us, perhaps we can bring practical help.
