OG71 DN 1024 CI, Baumer incremental encoder (6 mm solid shaft, IP66)

This is an incremental encoder from Baumer, model:OG71 DN 1024 CI. The parameters for this model are relatively simple, 6mm solid shaft, 58mm OD, synchronizing flange. This is the full range of application parameters.

This encoder in the past two years to consult the consistent are more, especially this year, the Spring Festival so far there have been several sets of customers. However, we are not providing the original encoder. Moreover, we customized non-standard products according to customer requirements. That is, we have developed customized alternative products.

This time the customer needs to customize 20 units for replacing the original encoder. Taking advantage of the situation of this customer's consultation, so I write a diary to record it. Here to do a full range of instructions to facilitate the subsequent consultation of customers to understand.

Customized alternative instructions

This encoder replacement customization has been developed for a few years now, and overall this encoder replacement is not complicated. Now we have a complete electrical and mechanical solution. It is possible to replace this encoder 1:1.

Let's start with a comparison:

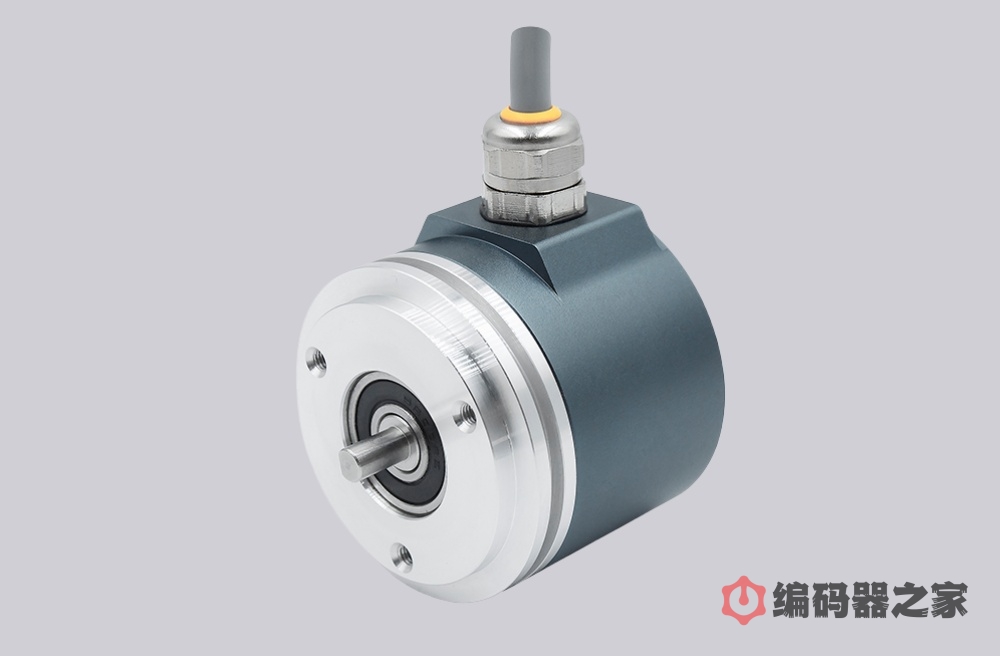

On the left is a Baumer encoder, on the right is our customized replacement. In terms of application parameters, a 1:1 replacement has been realized. There are also some differences in this one, for example: wiring. Our product is wired directly out of the way, or choose the M23-12 aerial plug. The rest is insignificant.

with regards toOG71 For the alternative development of the DN 1024 CI, we offer two versions, the main difference being the material. One is made of aluminum alloy and the other is made of stainless steel. You can choose according to your own working conditions.

Customization process and precautions

This encoder is not complicated in general, and the delivery time is relatively fast, generally speaking, 7 working days can be delivered. When communicating the model number, be sure to clarify the actual model number. If it is another model in the same series, the ideal way to take pictures when you are not sure of the condition. This will avoid a lot of problems.

If you are a trader, you have to explain to your customer the "way of appearing", we are "direct outlet" or "M23 aerial plug". In fact, the application is the same, one is wired in the back cover of the housing, and the other is wired externally. There is not much difference in application.

以上，就是对OG71 DN 1024 CI编码器的一个定制介绍。还有一些细节没有做说明，我们直接参考原编码器说明书就可以了。

If people have a need for this incomplete product, they can connect us.
