14-1436X-720 Pepperl+Fuchs incremental rotary encoder
Pepperl+Fuchs incremental rotary encoders
14-1436X: Up to 5000 ppr, ATEX certified.
10 V ... 30 V with RS 422 interface

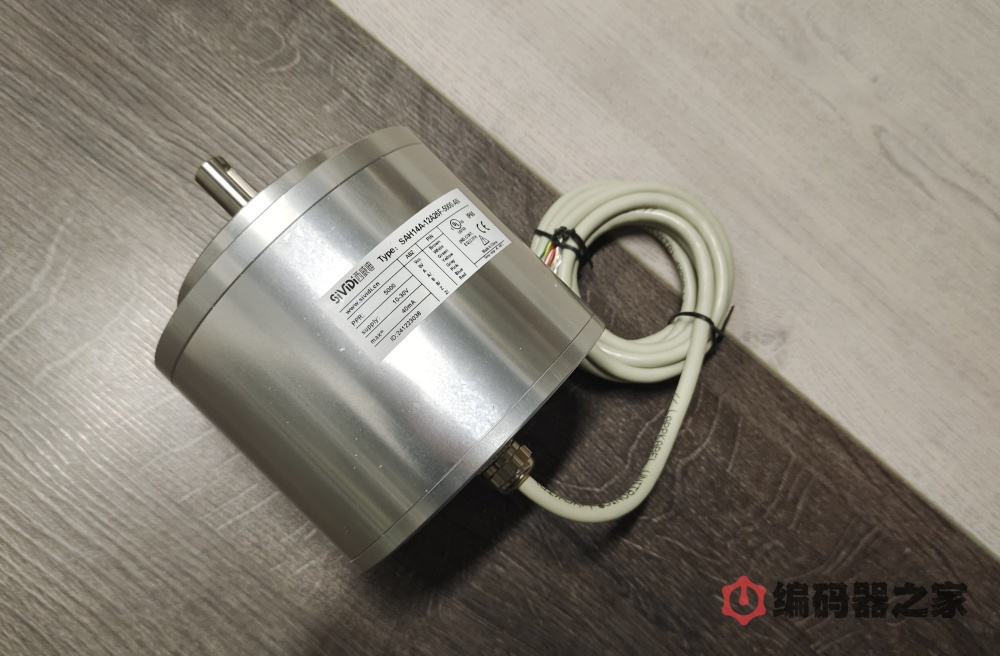

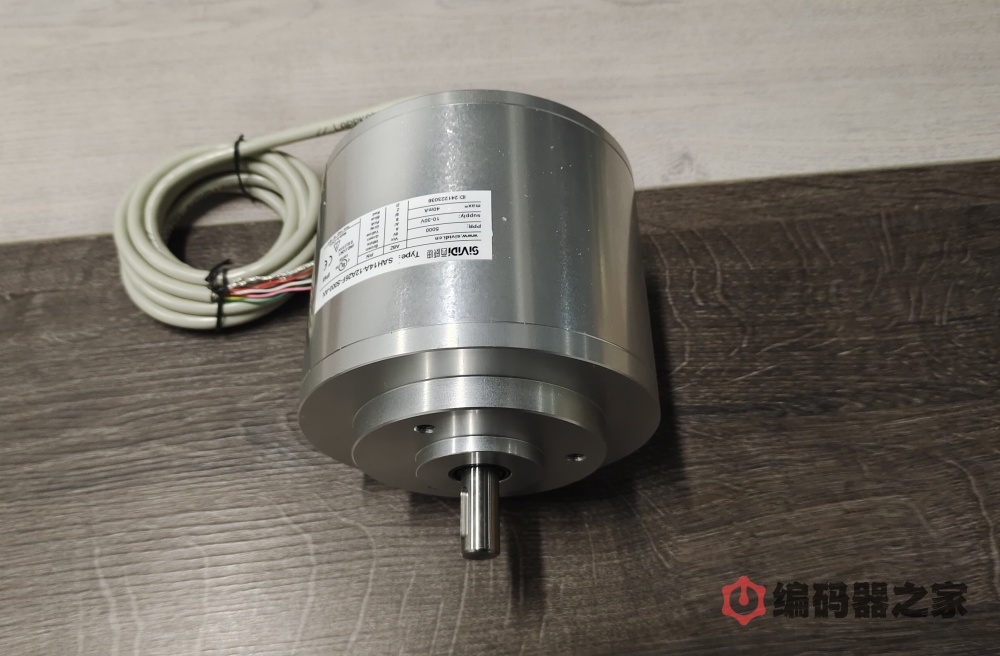

We offer encoder replacement solutions in the form of off-standard replacements with all 1:1 application parameters, perfect replacements for prototype encoders, solving procurement and other problems. The picture shows the replacement solution.
Technical data for incremental rotary encoder 14-1436X
General specifications
| causality | Detailed information |
|---|---|
| Detection type | photovoltaic |
| Maximum number of pulses | 5000 ppr |
| Operating voltage (U_B) | 10 ... 30 VDC |
| No-load supply current (I_0) | 80 mA max. |
| Output type | Push-Pull, Incremental |
| Pressure drop (U_d) | < 4 V |
| Maximum load current per channel | 40 mA |
| Maximum Output Frequency | 100 kHz |
| rising time | 250 milliseconds |
| Power-off delay (t_off) | 250 milliseconds |
| Protection level | IP66 |
Emission interference and noise immunity
| causality | (an official) standard |
|---|---|
| radiated interference | en 61000-6-4:2007/a1:2011 |
| noise immunity | EN 61000-6-2:2005 |
environmental conditions
| causality | gas export area | dust filter |
|---|---|---|
| operating temperature | -40 ... 55 °C | -30 ... 55 °C |
| Storage temperature | -40 ... 70 °C | -30 ... 70 °C |
Mechanical specifications
| causality | Detailed information |
|---|---|
| Material (housing) | 3.1645 Aluminum |
| Material (flange) | 3.1645 Aluminum |
| Shaft material | Stainless steel 1.4305 / AISI 303 |
| mass (in physics) | Approx. 3000 grams |
| rotation speed | Maximum 6000 min^-1 |
| moment of inertia (mechanics) | 400 g cm^2 |
| Starting torque | < 5 Ncm |
| shaft load | Axial: 60 N, radial 80 N |
Additional data
| causality | Detailed information |
|---|---|
| EU Type Examination Certificate | zelm 02 tex 0078 x |
| marking | 1 II 2G Ex db IIC T6 Gb, 1 II 2D Ex tb IIIC T80°C Db |
| Directive compliance | Directive 94/9/EC, EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014 |
