PSM78E Up to 30 digits multi-turn/ATEX certified/ICEx certified Fireproof enclosure/removable connecting cap

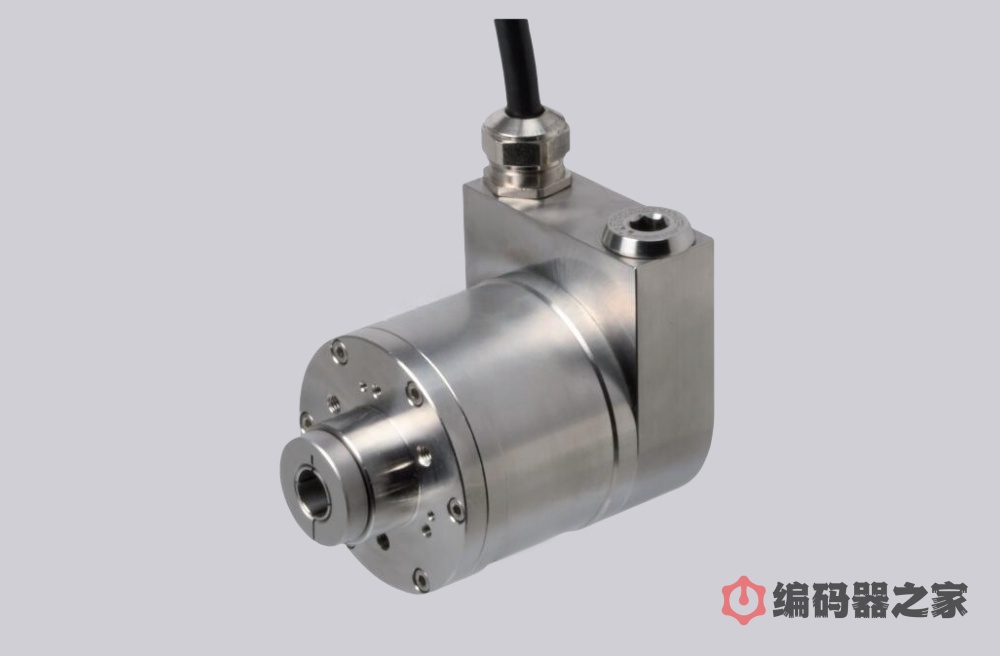

We offer encoder replacement solutions in the form of off-standard replacements with all 1:1 application parameters, perfect replacements for prototype encoders, solving procurement and other problems. The picture shows the replacement solution.
Technical data of the multiturn absolute rotary encoder PSM78E
General specifications
causality
Detailed information
Detection type
optical sampling
Equipment type
Multiturn absolute rotary encoders
Functional Safety (MTTFd)
210 a, L10: 7.7 E+9 at 3000 rpm
Operating voltage (U_B)
10 ... 30 VDC
No-load supply current (I_0)
Maximum 230 mA at 10 VDC, 100 mA at 24 VDC. 100 mA (24 VDC)
Time delay before availability
< 1000 milliseconds
biometrics
16-bit ± 2 LSB, 13-bit ± 1 LSB, 12-bit ± 0.5 LSB
output code
binary code
Interface Type
PROFIBUS
decision (of a congress)
Up to 16 bits for single-turn, up to 14 bits for multi-turn, up to 30 bits overall
approx. 2600 g (combination 1), approx. 3900 g (combination 2)
rotation speed
Maximum 3000 min^-1
moment of inertia (mechanics)
180 g cm^2
Starting torque
≤ 4 Ncm
shaft load
Axial: 60 N, radial 80 N
connectivity
causality
Detailed information
cable connection
∅9.6 mm, 7 pole, terminal box for connection
Operating modes and parameters
Operating modes/parameters
clarification
direction of rotation
Programmable, cw Ascending or Descending
zoom function
Supports programmable resolution per revolution
preset function
Supports programmable presets
diagnostic report
Support for extended diagnostic reports
high speed transmission
Support, optional units
limit switch
Programmable Limit Switches (Software)
debug mode
Debug Mode Support
